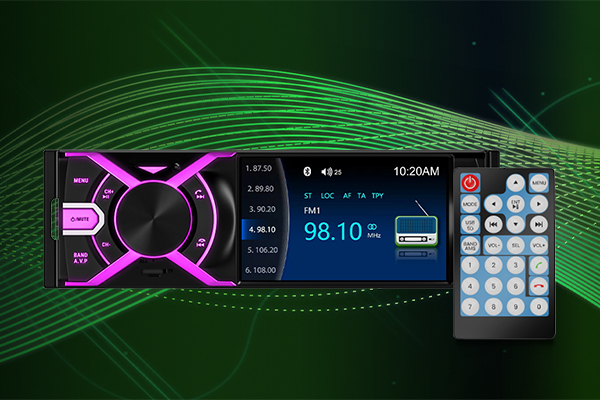

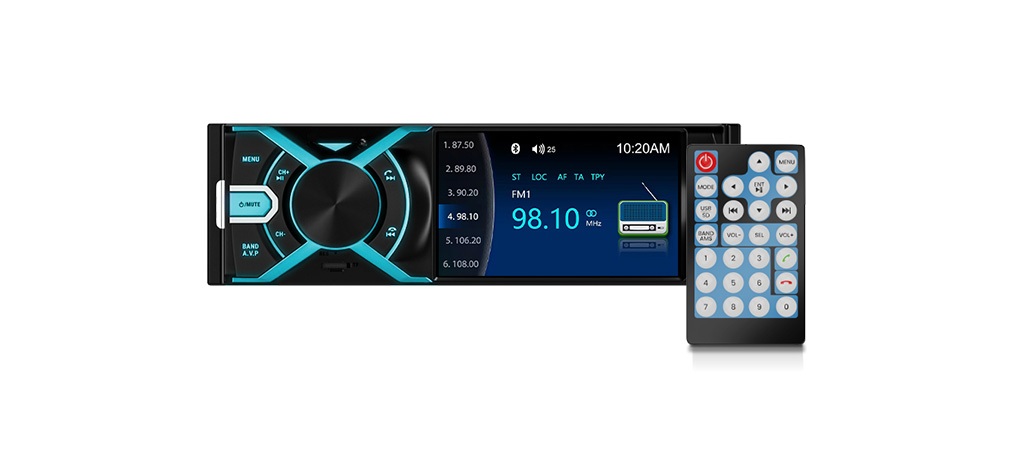

NAVITEL RD9

NAVITEL RD9-1
Multifunctional 1DIN car stereo

NAVITEL RD9 combines great capabilities, standard 1DIN compact form factor & a large 4” screen for all your media needs. It is equipped with a digital FM module with receiving range of 87.5-108.0 MHz and comes with an IR remote control unit that duplicates functions of the device’s buttons. This stereo system also features two USB-ports to play your favorite music and charge mobile devices.

NAVITEL RD9-2
Extra-large display

NAVITEL RD9 boasts a 4” colored TFT display with a resolution of 800x480 pixels that depicts what radio channel you are tuned to, which track is playing at the moment and how loud the whole system is. At the same time, this XL display leaves enough space for intuitive and responsive button controls that allow to easily change modes, accept calls and adjust volume. Moreover, it makes this stereo a full-fledged entertainment system that can play not only music, but most common video file formats as well. The list includes, but is not limited to: FLV, 3GP, MPEG, DivX, AVI and RMBV.

NAVITEL RD9-3
Bluetooth with hands-free capabilities

Listen to your favorite music and safely talk on the phone while driving with Bluetooth 5.0 protocol & hands-free option. The device not only allows to listen to music, but also proves useful for business and family calls on the road. Just connect your smartphone to the stereo and your contacts will be synced to easily make calls and speak freely without the need to hold or tap your phone.

NAVITEL RD9-4
Multiple formats from any source

Your Bluetooth-enabled smartphone is not the only device you can listen to your favorite tracks from. NAVITEL RD9 comes fit with two USB ports with the top one allowing to connect USB drives and listen to music directly from them. And if that was not enough, this stereo system also has an AUX port and a microSD slot that works great with memory cards of up to 128 GB of storage. The device supports most mainstream music file formats like MP3, WMA, WAV and FLAC to keep up with your quality and sound preferences.

NAVITEL RD9-5

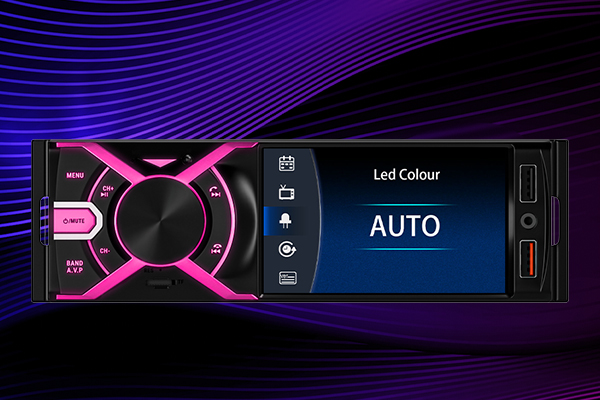

7 color backlight

NAVITEL RD9 features a customizable seven color backlight to compliment your car’s interior and keep it sleek, or shift the atmosphere inside the vehicle into the accordance with your mood.

NAVITEL RD9-6
Charge anything mobile

Smartphone, tablet, smartwatch, headphones and other mobile devices can be easily charged by plugging their respective cables into the lower USB port that delivers up to 800 mA of current. Stay in touch for longer!

Contents

NAVITEL RD9 car radio
Connecting cables (2 pcs)
Install tool (2 pcs)
Remote control
Warranty card
User manual

NAVITEL RD9:

Power
USB output current
2.0 A
Source voltage
12-14 V
Output current during the charging
700 - 800 mA
Display
Display
yes
Display type
TFT
RGB backlight
7 colors
Colored
yes
Screen size
4"
Screen resolution
800x480
Dimensions
Size
187x57x121 mm
Installation dimensions
178x121x50 mm
Front panel dimensions
187x57 mm
Unit size
1DIN
Weight
413.4 g
Sound
Audio formats
MP5, MP3, WAVE, APE, OGG
Bluetooth
yes
FM radio
FM
FM frequencies
87,5 - 108,0 MHz
Hands-free
yes
Hands-free profiles
A2DP, AVRCP, HSP, HFP
Microphone
yes
Equalizer
yes
Channel separation
≥ 56 dB
Output power
4х45 watt
Audio inputs/outputs
2 x USB-A, MicroSD, AUX
AUX
yes
RCA
yes
RCA audio output
yes
Mini-jack audio on the front panel
yes
Number of supported radio station
18
Bluetooth version
5.0
Video
Video formats
RMVB, RM, FLV, 3GP, MPEG, DIVX, XVID, DTANOB, AVi
Output video channels
2
Input video channels
1 (for rear camera)
Specifications
USB
2 x USB-A pc.
USB Flash max volume
up to 128 GB
The ability to charge a connected mobile device
yes
Slot microSD
up to 128 GB
Program Search
automatic
Remote control
yes
CarPlay/Android Auto
no
EAN
8594181745833
Warranty
Warranty period
24 months

Documentation

Note: the package, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.
