NAVITEL RE 5 DUAL

NAVITEL RE 5 DUAL - 01
Unique 2-in-1 device

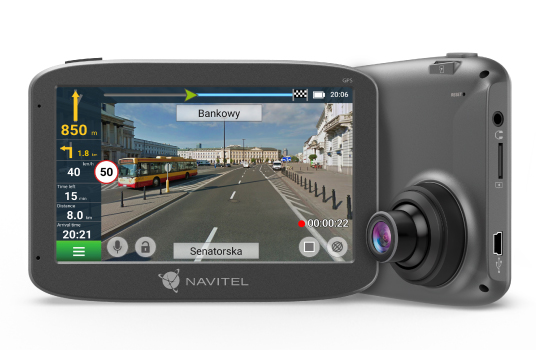

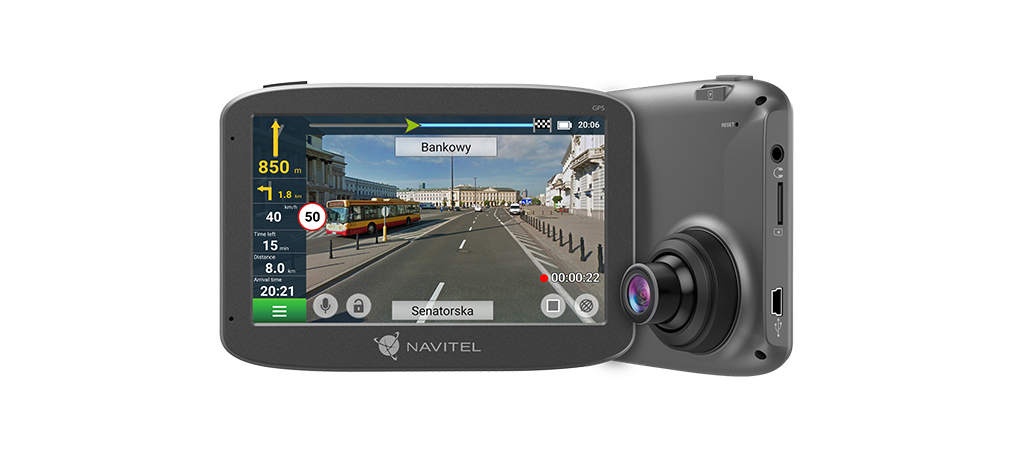

NAVITEL RE 5 DUAL is a unique 2-in-1 device, which combines car DVR functionality with GPS navigation features. The device is designed for user-friendly experience with a multifunctional approach in mind.

NAVITEL RE 5 DUAL - 02
Reliable Linux operating system

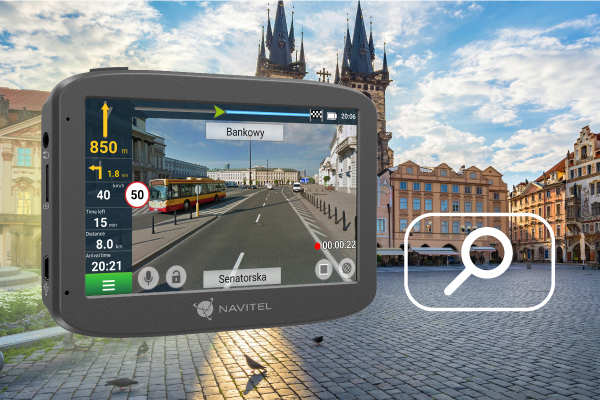

Based on the reliable and fast Linux operating system, NAVITEL RE 5 DUAL will provide stable and smooth operation on any trip. The device will allow you to plot a route of any complexity with an unlimited number of waypoints, and the search is available not only by the address, but also by the base of useful objects: gas stations, banks, cafes and attractions.

NAVITEL RE 5 DUAL - 03
NAVITEL RE 5 DUAL - 04
Full HD video recorder

The device is equipped with a high-quality camera with a modern GC2053 sensor and glass optics providing a viewing angle of 140°. The resolution of 1920x1080 Full HD at 30 frames per second allows for high-quality video shooting in low light, as well as in the conditions of the blinding sun.

NAVITEL RE 5 DUAL - 05
NAVITEL RE 5 DUAL - 06
NAVITEL RE 5 DUAL - 07
Special NAVITEL® technology

Unique feature of enhanced navigation allows keeping track of driving prompts while launching video recorder as the main mode. Real-time traffic is taken into account when calculating route time and can be easily seen on the screen in the navigation mode.

NAVITEL RE 5 DUAL - 08
Magnetic Mount

One of the key advantages of NAVITEL RE 5 DUAL is a magnetic mount with a continuous power supply. The suction cup mount base that is included in the package attaches firmly to the windshield of the car. Through the USB port, it is connected to the car lighter socket via a NAVITEL car charger that is also included.

NAVITEL RE 5 DUAL - 09
Record mode control

Even during navigation it is easy to keep an eye on the recording. You can drag the preview window across the display. Built-in G-sensor is crucial for retaining critical footage made during road accidents. Motion detection is activated when the vehicle is accelerating at a high speed, the brakes are engaged non routinely, or unusual activity is detected close to the car.

NAVITEL RE 5 DUAL - 10
Possibility of connecting a rearview camera*

The device supports the connection of an HD rearview camera, which you can install in the car and thus record the events taking place behind the car.
* Rear view camera is not included in the package.

NAVITEL RE 5 DUAL - 11
Maps of 47 countries

The package of maps preinstalled on NAVITEL RE 5 DUAL includes 43 European countries, Belarus, Kazakhstan, Russia and Ukraine. Additional maps can be purchased and installed with the help of Navitel Navigator Update Center. The device uses microSD up to 32 GB to store additional maps and media files.

Contents

Navigation DVR NAVITEL RE 5 DUAL
Car holder (windscreen)
Car charger 12/24 V
mini-USB — USB
Stylus
User manual
Warranty card

Tech specs

Screen
Screen type
TFT
Screen size
5"
Screen resolution
480х272
Touch Screen
yes
Backlit Display
yes
Camera
Camera sensor
GC2053 (Night Vision)
Video resolution
Full HD 1080P
Viewing angle
140°
Lens material
4-layer glass
Video format
MOV (H.264)
Loop recording
yes
Overwrite protection
yes
Navigation
Software
Navitel Navigator
Pre-installed maps
43 European countries, Russia, Belarus, Kazakhstan and Ukraine
Installation of additional maps
yes
Voice Prompts
yes
SPEEDCAM alerts
yes
Route time calculation
yes
Features
G-сенсор
yes
FM-transmitter
yes
General
OS
Linux
CPU
MSB2531 ARM Cortex A7
CPU Frequency
800 MHz
RAM
256 MB
Internal Storage
8 GB
Interfaces
Mini-USB, 2 microSD
MicroSD slot
2 MicroSD up to 32 GB
Mount
suction cup (windscreen/base), magnetic (base/device)
Speaker
yes
Microphone
yes
Battery capacity
800 mAh
Color
gray
Dimensions (WxHxD)
88x18x132 mm
Weight
200 g
Connectivity
Mini-USB
yes
Bluetooth
no
Car charger 12V-24V
yes
Warranty
Warranty period
24 months

Maps

NAVITEL RE 5 DUAL is delivered with preloaded maps of 47 countries.

Every map includes residential and industrial infrastructure with address search and detailed road network with traffic direction, interchanges, roundabouts, and other relevant information. There is also a huge POI database (filling stations, ATMs, restaurants, etc.) and an extensive SPEEDCAM database.

Free lifetime map updates.

Albania
Albania
Andorra
Andorra
Austria
Austria
Belarus
Belarus
Belgium
Belgium
Bulgaria
Bulgaria
Bosnia and<br>Herzegovina
Bosnia and
Herzegovina
Cyprus
Cyprus
Czech Republic
Czech Republic
Croatia
Croatia
Denmark
Denmark
Estonia
Estonia
Finland
Finland
France
France
Germany
Germany
Gibraltar
Gibraltar
Greece
Greece
Hungary
Hungary
Iceland
Iceland
Isle of Man
Isle of Man
Italy
Italy
Kazakhstan
Kazakhstan
Latvia
Latvia
Liechtenstein
Liechtenstein
Lithuania
Lithuania
Luxembourg
Luxembourg
North<br>Macedonia
North
Macedonia
Malta
Malta
Moldova
Moldova
Monaco
Monaco
Montenegro
Montenegro
Netherlands
Netherlands
Norway
Norway
Poland
Poland
Portugal
Portugal
Romania
Romania
Russia
Russia
San Marino
San Marino
Serbia
Serbia
Slovakia
Slovakia
Slovenia
Slovenia
Spain
Spain
Sweden
Sweden
Switzerland
Switzerland
Ukraine
Ukraine
United Kingdom
United Kingdom
Vatican
Vatican

Documentation

The specifications may change due to upgrades.
