NAVITEL R9 DUAL

NAVITEL R9 DUAL 01
NAVITEL R9 DUAL 02
Main assistant on the way

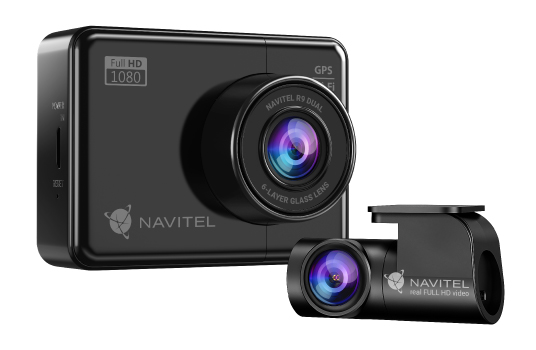

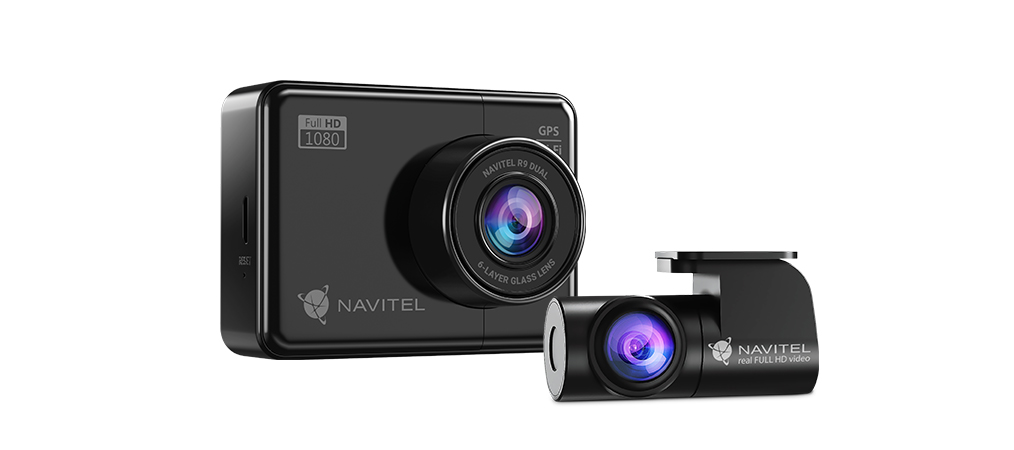

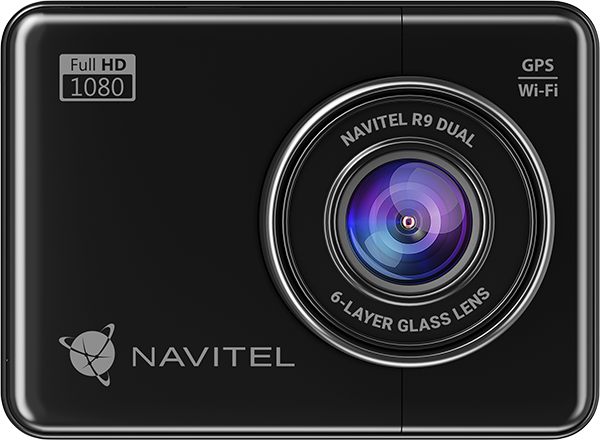

NAVITEL R9 DUAL is a modern two-channel Full HD dash cam equipped with the Sony 307 (STARVIS) sensor, a Full HD rear view camera and a 500 mAh high-capacity battery.

NAVITEL R9 DUAL 02
NAVITEL R9 DUAL 04

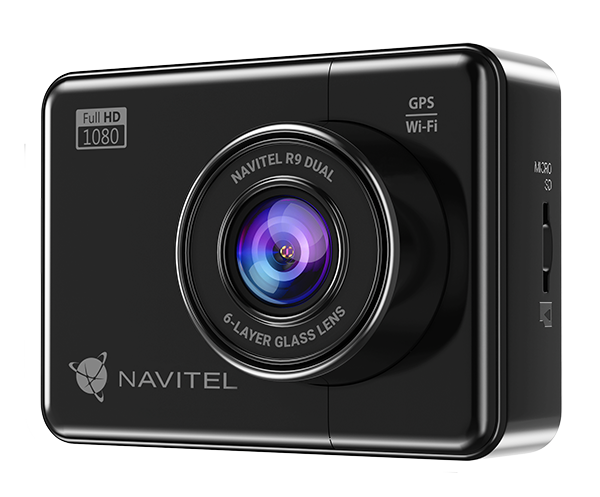

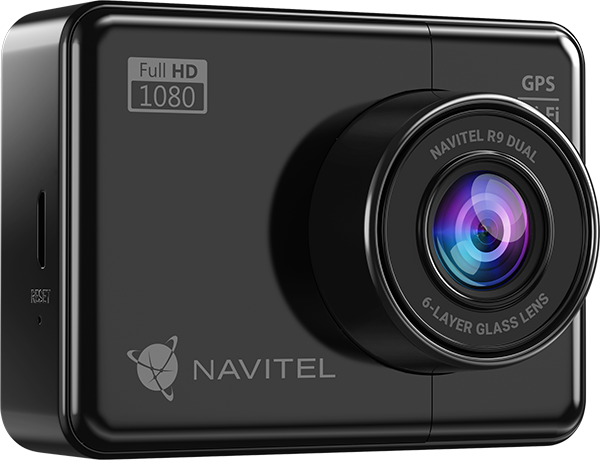

High quality video

The MSTAR 8339 processor supports full HD video resolution of both the front and rear cameras at the same time. The viewing angle of the front camera is 170° and allows the device to capture not only several lanes of the roadway, but also the roadside. The viewing angle of the rear view camera is 136°. Sony's super sensitive STARVIS 307 (night vision) sensor, combined with a six-layer glass lens, ensures perfect video quality even in low light.

NAVITEL R9 DUAL 05

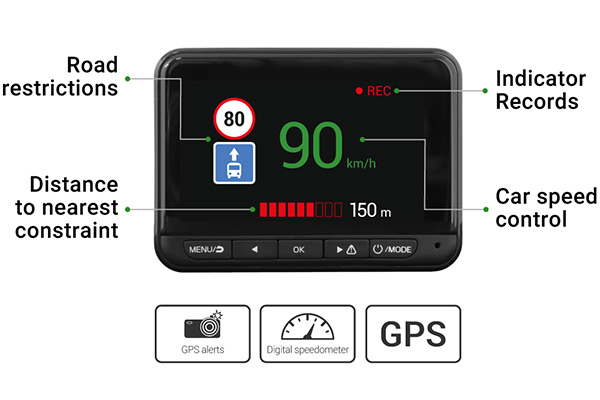

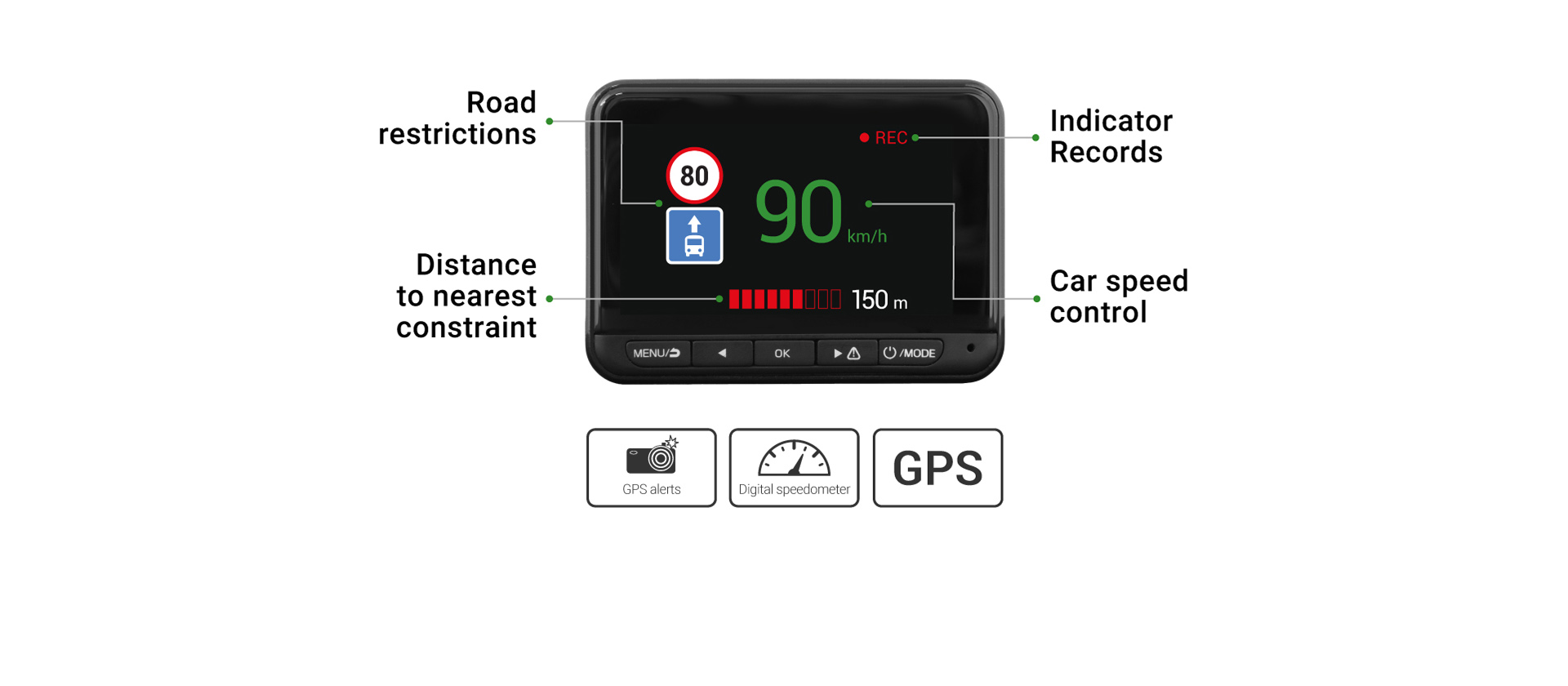

Digital speedometer and GPS informer

Thanks to the built-in GPS module and a regularly updated database of cameras and warnings, the dash cam notifies the driver in a timely manner of upcoming restrictions and his actual speed, helping to navigate the traffic situation and avoid unnecessary fines.

NAVITEL R9 DUAL 06
NAVITEL R9 DUAL 07
NAVITEL R9 DUAL 08
Wi-Fi and easy DVR control with Navitel DVR Center

Using the built-in Wi-Fi module and the Navitel DVR Center* application, control of the DVR will be in the truest sense of the word: Navitel DVR Center* allows you to configure and update the DVR software, format the SD card, and view, store and copy recorded files to your mobile device without even leaving your car.
* The Аpp supports both iOS and Android systems.

NAVITEL R9 DUAL 09

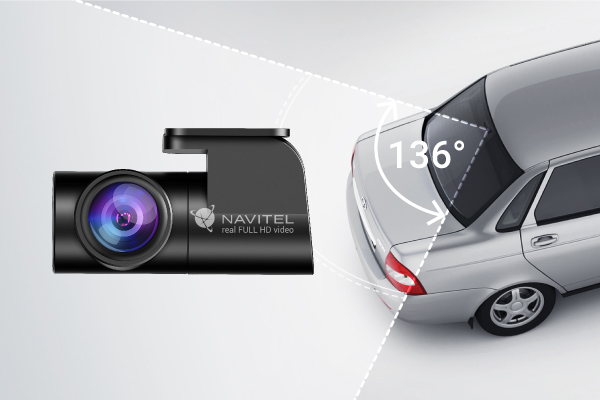

Dual control

The included Full HD interior rear view camera allows you to record events happening behind the car. An additional camera is mounted on the rear window of the car using 3M tape and has a viewing angle of 136°, capturing the "blind" zones.

NAVITEL R9 DUAL 10
NAVITEL R9 DUAL 11
Battery 500 mAh

The increased battery capacity of 500 mAh will allow the DVR to work offline without recharging. If the G-sensor built into the device detects an impact or collision while in the off state in the parking mode, the dash cam will automatically turn on and start recording. The recording file will be protected and the clip will not be deleted from the memory card during a loop overwrite.

NAVITEL R9 DUAL 11
Navitel DVR Player

The built-in GPS-module video recorder in R9 Dual allows you to automatically save along with the video and the route of the car. After downloading and installing the Navitel DVR Player program on your PC, the user can not only view and edit the captured video files, but also see the route of movement on the maps.

NAVITEL R9 DUAL 12
Maps as a gift

As a gift to the NAVITEL R9 DUAL video recorder, each customer receives a voucher for the Navitel Navigator program for Android OS devices. The annual subscription includes a license for maps of more than 45 countries of the world.

Contents

R9 DUAL device
R9 DUAL suction holder
Electrostatic film
USB-C car charger
Micro-USB Cable
1080p rear camera
Video cable for rear camera
Microfiber cloth
User manual
Warranty card
Gift voucher

NAVITEL R9 DUAL:

Camera
Camera sensor
SONY 307 (night vision)
Video resolution
Full HD 1920х1080
Viewing angle
170°
Lens material
6-layer glass
Video format
MOV
Image format
JPG
Video fragments length
1/2/3/5/10 min
Loop recording
yes
Overwrite protection
yes
Rear camera
Rear camera
included in the package
Video resolution
Full HD 1920х1080
Viewing angle
136°
Mount
3M adhesive
Connection to brake lights when switching to reverse gear
yes
Camera rotation
350°
Dimensions
71x36x28 mm
Display the image from the rear camera to the DVR screen when turning the reverse gear
yes
Parking lines
yes
Black wire length
690 cm
Red wire length
115 cm
Parking assist function
yes
Compatible cameras
Display
Screen size
2.7"
Screen type
IPS
Screen resolution
320х240
Touch screen
no
Features
Auto-Start
yes
GPS-alerts
yes
Digital speedometer
yes
G-sensor
yes
Motion detection
yes
Parking mode
yes
Sound recording
yes
Wi-Fi support
yes
GPS antenna
yes
Mass Storage
yes
Manage via Navitel DVR Center
yes
Power
Power supply (12-24V 1.5A)
5V 2.5A
Battery
Li-Pol
Battery capacity
500 mAh
Car charger wire length
340 cm
Car charger plug
USB-C
General
CPU
MSTAR 8339DN
Interfaces
micro-USB for devices released before
USB-C for devices released after
microSD slot
up to 64 GB
Number of cameras
2
Mount
suction cup
Speaker
yes
Microphone
yes
Color
black
Dimensions
75x56x37 mm
EAN
8594181745208
Warranty
Warranty period
24 months

Documentation

Note: the package, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.
