NAVITEL RC3 PRO

NAVITEL RC3 PRO 01
NAVITEL RC3 PRO 02

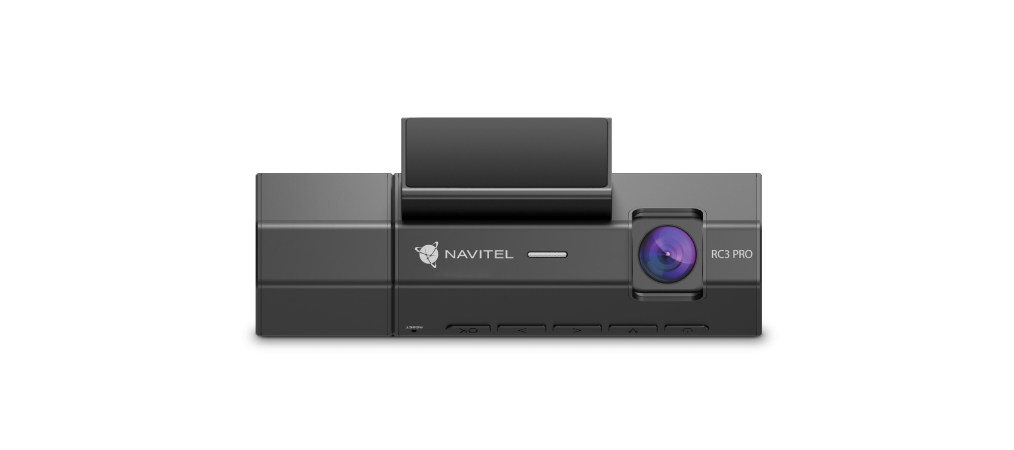

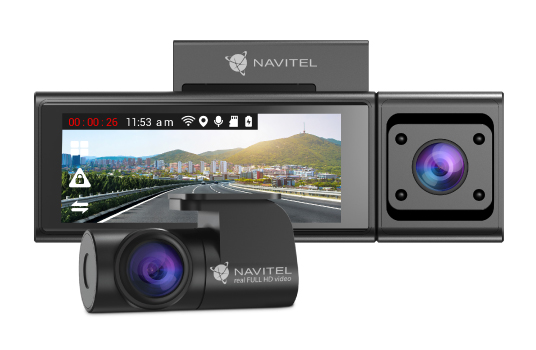

Optimal solution for road safety

The RC3 PRO is a triple channel dash cam that offers 135° front camera, 110° interior camera and 106° rear camera, it can monitor the front, rear, and interior of your vehicle simultaneously with audio at Full HD resolution (1080P + 1080P + 1080P). The front and interior cameras' lens is vertically rotatable for best viewing angle, and the rear camera lens is 360 degrees rotatable. All-round video recording gives you full protection when driving on the road.

NAVITEL RC3 PRO 03
NAVITEL RC3 PRO 04

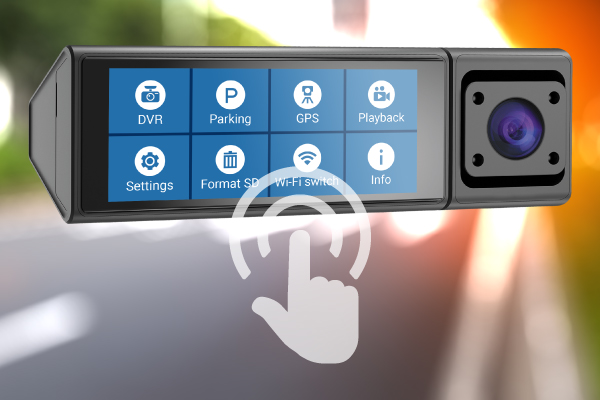

One-finger Operation Touch Screen

Featuring a 3,16-inch sensitive touch screen with simple and elegant icons, the RC3 PRO dashcam makes each operation more effortless and responsive, such as navigating the menus and settings, locking the current video. Thoughtful and friendly user interface for you to operate.

NAVITEL RC3 PRO 05
NAVITEL RC3 PRO 06

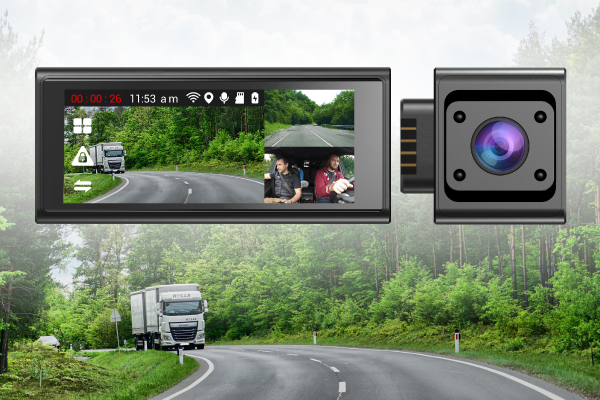

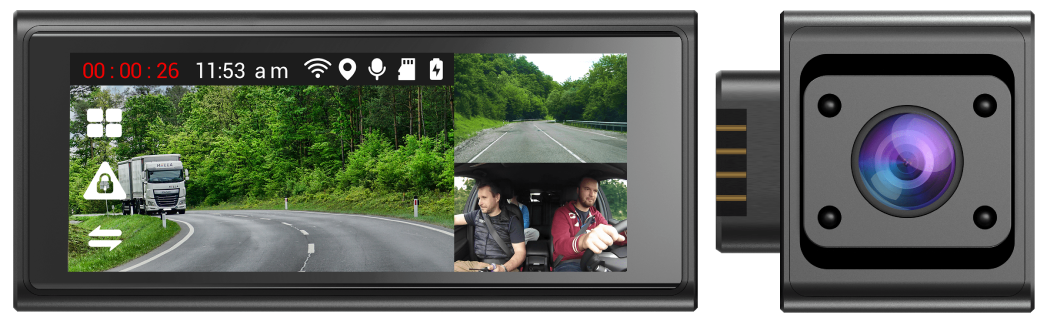

Removable Infrared Interior Camera

The interior camera records in-cabin activity in 1080p Full HD at a 110° field of view. Also equipped with 4 infrared LED lamps, allowing the camera to record cabin activity even in complete darkness. The inconspicuous infrared LEDs automatically activate based on the ambient light. Ideal for fleets, taxis, ride-share drivers, parents and other drivers who are concerned with capturing the activity inside the car. The IR interior camera is easily detachable from the dashcam body if privacy is required.

NAVITEL RC3 PRO 07
NAVITEL RC3 PRO 08

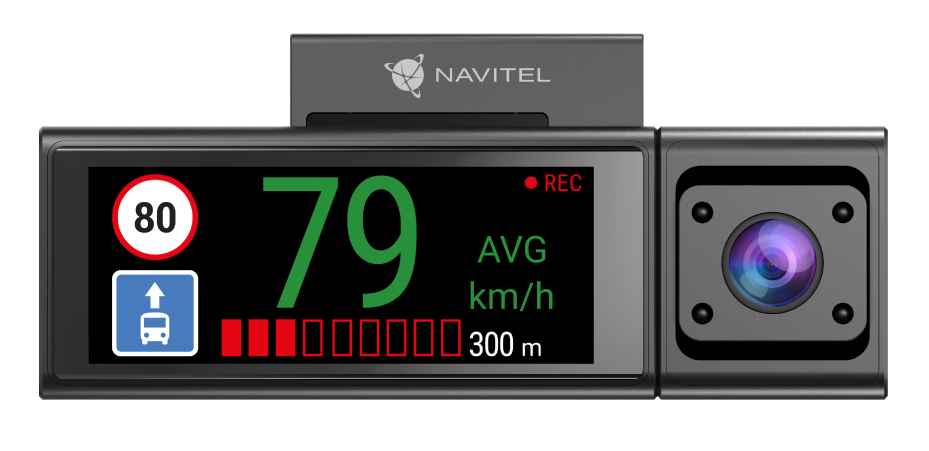

Digital speedometer and camera alerts

The built-in GPS antenna allows the driver to receive up-to-date information about the driving speed, as well as more than 60 types of speed cameras, mobile cameras, and dummy cameras, dedicated lanes for public transport, and other potentially dangerous places. Timely notification of upcoming restrictions will help the driver navigate the traffic situation and avoid unnecessary fines.

NAVITEL RC3 PRO 09
WiFi Connection and Smart Control with Navitel DVR Center

You can access videos from the dashcam on your smartphone by Navitel DVR Center App play and download these videos, and share your journey with friends or relatives.You can also easily operate and set the dash cam on the App, getting rid of tedious button operations.

NAVITEL RC3 PRO 10
Loop recording & G-sensor

Seamless Loop Recording overwrites the oldest footage with the newest upon filling a card to capacity. Supports up to 128GB card max. The built-in G-Sensor monitors and detects unusual impacts or vibrations and automatically triggers the emergency video protection, locking the footage to "Event file" to prevent that video from an overwrite.

NAVITEL RC3 PRO 11
Parking mode

Parking mode* allows you to record events during a short or long parking. In this mode, video recording is available at a frequency of 1, 2, 5 frames per second. Recording is conducted from all three cameras of the device simultaneously.

* The mode is available only when connected to a device with constant power through a device that prevents excessive battery discharge - NAVITEL SMART BOX MAX.

NAVITEL RC3 PRO 13
Map licenses for free

All users of NAVITEL RC3 PRO receive a gift voucher for the Navitel Navigator application. The annual map subscription includes licenses for European countries, Russia, Belarus, Kazakhstan, and Ukraine.

Contents

NAVITEL RC3 PRO Digital Video Recorder
Rear camera
Windscreen holder
Car charger 12/24 V
Card Reader
Microfiber cloth
User manual
Warranty card
Gift voucher

NAVITEL RC3 PRO:

Camera
Camera sensor
GC4653 (2K)
Video resolution
1920x1080
Viewing angle
135°
Lens material
4-layer glass
Video format
TS
Image format
JPG
Video fragments length
1/3/5 min
Loop recording
yes
Overwrite protection
yes
Rear camera
Rear camera
included in the package
Rear camera sensor
GC2053
Video resolution
1920x1080
Viewing angle
106°
Mount
3M adhesive
Connection to brake lights when switching to reverse gear
yes
Camera rotation
360°
Display the image from the rear camera to the DVR screen when turning the reverse gear
yes
Parking lines
no
Black wire length
697 cm
Red wire length
118 cm
Display
Screen size
3.16"
Screen type
IPS
Screen resolution
820x320
Touch screen
yes
Interior camera
Interior camera
yes
Interior camera sensor
F37
Video resolution
1920x1080
Viewing angle
110°
Mounting method
on the body of the DVR / removable
IR led-light
yes
Features
Auto-Start
yes
GPS-alerts
yes
Digital speedometer
yes
G-sensor
yes
Parking mode
yes
Sound recording
yes
Wi-Fi support
yes
GPS antenna
yes
Manage via Navitel DVR Center
yes
Wi-Fi
Wi-Fi Operating frequency
2.4~2.4835 GHz ISM Band
Wi-Fi Output Power 802.11b /11Mbps
16dBm
Wi-Fi Output Power 802.11g /54Mbps
13dBm
Wi-Fi Output Power 802.11n /MCS7
12dBm
Power
Power supply (12-24V)
5V 2.5A
Supercapacitor
1.5 F
Car charger wire length
346 cm
General
CPU
MSTAR 8629Q
Interfaces
mini-USB
microSD slot
up to 128 GB
Number of cameras
3
Mount
3M adhesive
Speaker
yes
Microphone
yes
Color
black
Gift voucher
maps of Europe, Russia, Belarus, Kazakhstan, Ukraine (12-month license)
EAN
8594181744119
Warranty
Warranty period
24 months

Documentation

Note: the package, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.
